Texas Instruments provides a recommended PCB layout in the LM5143RHAR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal performance.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website. Additionally, the inductor's core material, size, and winding configuration should be considered to ensure low losses and high efficiency.
The maximum junction temperature (Tj) for the LM5143RHAR is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance. The device's thermal management should be designed to ensure that the junction temperature remains within the recommended range.
Yes, the LM5143RHAR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is designed to operate in harsh environments. However, additional testing and validation may be required to ensure compliance with specific industry standards and regulations.
Troubleshooting issues with the LM5143RHAR requires a systematic approach. Start by verifying the PCB layout, component values, and soldering quality. Use oscilloscopes and other measurement tools to identify the source of the issue. Check the input and output voltage, current, and frequency. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5143RHAR Overview

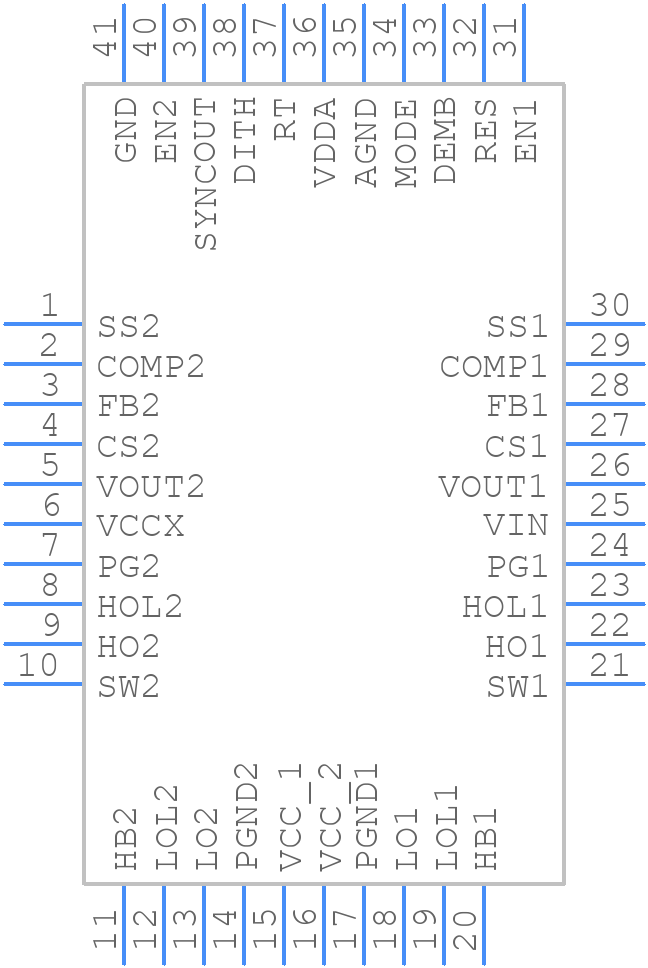

Use the download button to access the LM5143RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM514,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
