A good PCB layout for the LM5145QRGYRQ1 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure the LM5145QRGYRQ1 operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
A low-ESR ceramic capacitor with a value of 10-22 μF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple.
To troubleshoot issues with the LM5145QRGYRQ1, check the input voltage, output current, and junction temperature. Verify the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to measure the output voltage and current waveforms to identify any anomalies.
Yes, the LM5145QRGYRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, additional testing and validation may be required for specific applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5145QRGYRQ1 Overview

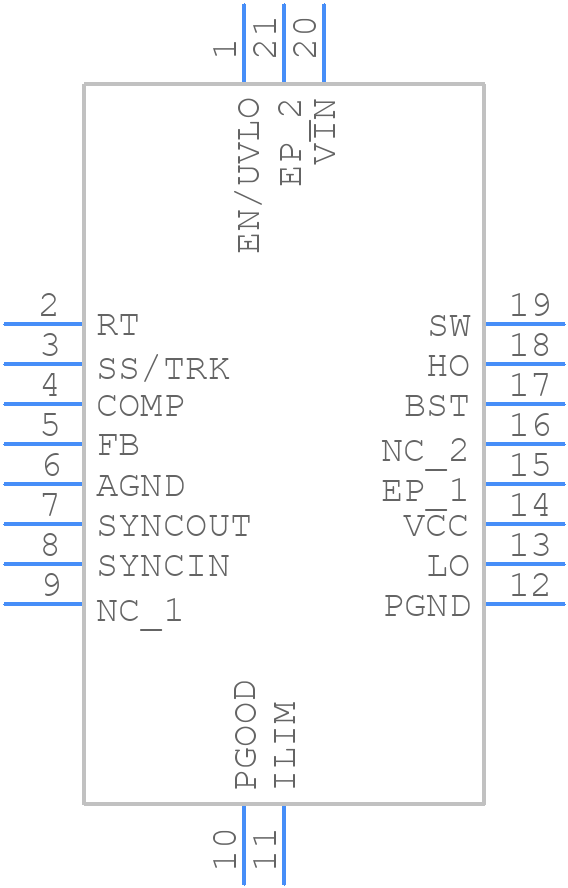

Use the download button to access the LM5145QRGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM514,
or try a keyword search, such as Switching Regulator or Controllers
