Texas Instruments provides a recommended PCB layout guide in the LM5148 datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website has a PCB layout tool that can be used to generate a custom layout for the specific application.
The selection of the inductor depends on the specific application requirements, such as the output voltage, output current, and switching frequency. Texas Instruments provides a inductor selection guide in the LM5148 datasheet, which includes a list of recommended inductors and their corresponding characteristics.
The maximum operating temperature for the LM5148PSQRGYRQ1 is 125°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the maximum junction temperature is 150°C.
The LM5148PSQRGYRQ1 has a built-in OVP feature that can be enabled by connecting a resistor divider network to the OVP pin. The datasheet provides a detailed description of the OVP works and how to implement it.
The recommended input capacitor for the LM5148PSQRGYRQ1 is a low-ESR ceramic capacitor with a value of 10uF to 22uF, as specified in the datasheet. The capacitor should be placed close to the input pins of the device to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5148PSQRGYRQ1 Overview

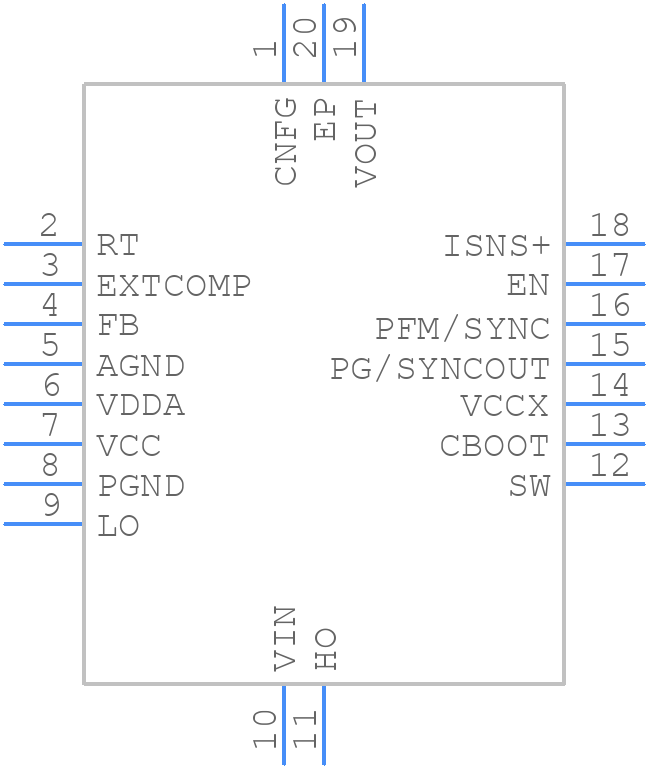

Use the download button to access the LM5148PSQRGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM514,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
