SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.575 mA
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
350 kHz
Technology:
BICMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM5185PWPR Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the LM5185PWPR is 60V, but it's recommended to keep it below 50V for reliable operation.
To ensure the LM5185PWPR operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high power dissipation.
Yes, the LM5185PWPR is suitable for high-reliability applications, but it's essential to follow proper design and manufacturing guidelines, and to perform thorough testing and validation.
To troubleshoot issues with the LM5185PWPR, start by checking the input voltage, output voltage, and current. Then, verify the component values, PCB layout, and thermal design. Finally, consult the datasheet and application notes for guidance.
Yes, the LM5185PWPR is qualified for automotive applications, but it's essential to follow the AEC-Q100 qualification guidelines and to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5185PWPR Overview

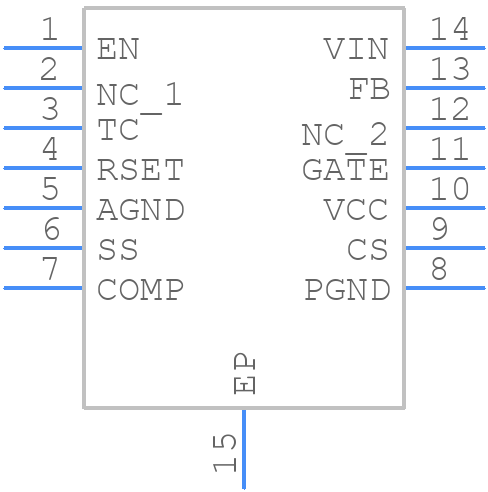

Use the download button to access the LM5185PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM518,
or try a keyword search, such as Switching Regulator or Controllers
