A good PCB layout for the LM53605QDSXTQ1 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, ensure that the feedback resistors are of low tolerance (e.g., 1%) and that the feedback network is properly compensated.
The maximum safe operating junction temperature for the LM53605QDSXTQ1 is 150°C. Exceeding this temperature can lead to reduced reliability and potentially cause device failure.
Yes, the LM53605QDSXTQ1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and Texas Instruments provides a PPAP (Production Part Approval Process) documentation package for automotive customers.
The LM53605QDSXTQ1 has a built-in POR and BOR function. To handle these functions, ensure that the input voltage ramps up slowly (e.g., >10 ms) to allow the device to properly reset and stabilize. Also, ensure that the output capacitor is sufficiently large to handle the inrush current during startup.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536005QDSXTQ1 Overview

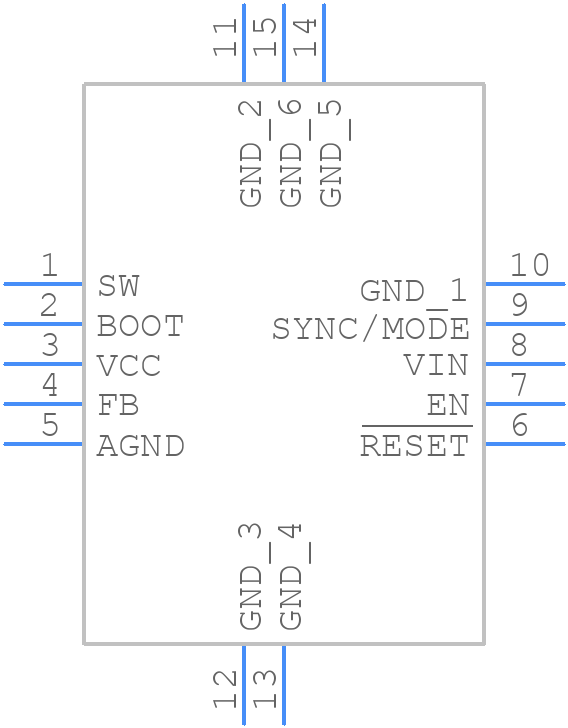

Use the download button to access the LM536005QDSXTQ1 schematic symbol, PCB footprint, and 3D model.
