A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
For EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, ensure that the device is operated within its recommended operating frequency range and that proper decoupling and bypassing are used.
To troubleshoot issues with the device's output voltage regulation, start by verifying that the input voltage and output voltage are within the recommended operating ranges. Check for proper PCB layout and decoupling, and ensure that the device is operated within its recommended operating temperature range. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or instability.
The recommended input and output capacitors for optimal performance depend on the specific application and operating conditions. However, as a general guideline, use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input capacitor, and 10uF to 47uF for the output capacitor. Ensure that the capacitors are rated for the maximum input voltage and operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53600LQDSXTQ1 Overview

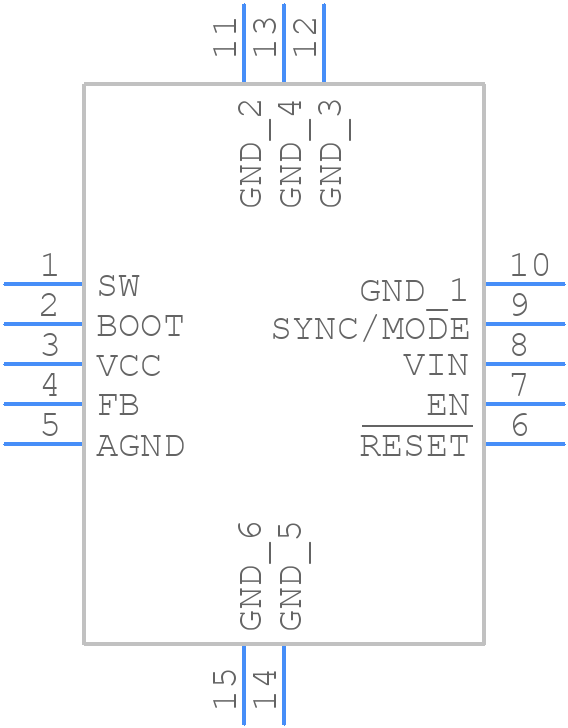

Use the download button to access the LM53600LQDSXTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
