ALSO OPTS IN PFM CONTROL TECH, ALSO AVLB VOUT = 5V, ALSO OPTS IN ADJ MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
9.9 V
Output Voltage-Min:
3.2 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2350 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM536035QPWPTQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure proper power-up and configuration, follow the recommended power-up sequence outlined in the datasheet, and make sure to configure the device according to the recommended settings for the specific application. Additionally, consult the device's errata sheet for any known issues or workarounds.
Operating the device outside of the recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device damage. It's essential to ensure that the device operates within the specified temperature range, voltage, and current limits to guarantee reliable operation.
To troubleshoot issues with the device, start by consulting the datasheet and application notes for common pitfalls and troubleshooting guides. If the issue persists, contact TI's support team or a local FAE for assistance. They can provide additional guidance and support to help resolve the issue.
When using the device in a high-reliability or safety-critical application, it's essential to follow the recommended design and testing guidelines to ensure the device meets the required safety and reliability standards. Consult the device's safety manual and relevant industry standards (e.g., IEC 61508) for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536035QPWPTQ1 Overview

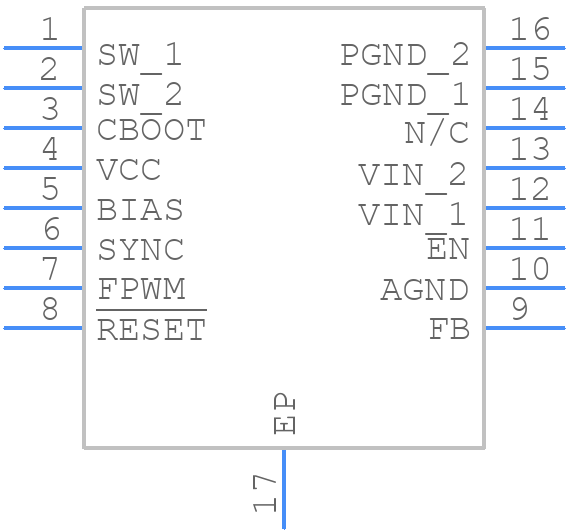

Use the download button to access the LM536035QPWPTQ1 schematic symbol, PCB footprint, and 3D model.
