LM5574QMT/NOPB - Texas Instruments

Description: SIMPLE SWITCHER® 75V, 0.5A Step-Down Switching Regulator

Download LM5574QMT/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

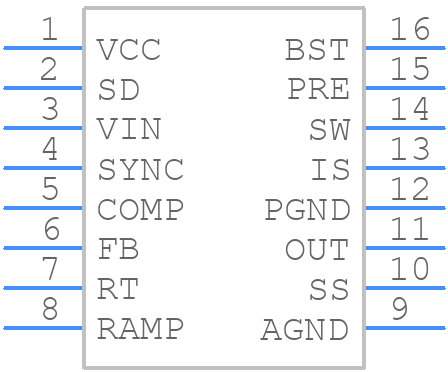

LM5574QMT/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5574QMT/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A 2021
click to zoom
3D Models
LM5574QMT/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW0016A 2021
click to zoom

LM5574QMT/NOPB Details

  • Manufacturer Part Number:

    LM5574QMT/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    70 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    7.15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM5574QMT/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Texas Instruments recommends using a soft-start circuit to limit the inrush current during power-up. Additionally, a minimum input capacitance of 10uF is recommended to ensure stable operation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage on the EN pin.
  • The LM5574QMT/NOPB is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • To troubleshoot oscillations or instability, Texas Instruments recommends checking the PCB layout for noise coupling, ensuring proper decoupling of the input and output capacitors, and verifying that the output filter components are properly selected. Additionally, checking the input voltage and current ripple can help identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM5574QMT/NOPB Overview

Use the download button to access the LM5574QMT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM557, or try a keyword search, such as Switching Regulator or Controllers
