ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 32.4
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e3
Length:
9.7 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
28
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
34 V
Output Voltage-Min:
1.236 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
2 mA
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM5642XMH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM5642XMH involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR of 0.1 ohms is recommended for the output capacitor.
The LM5642XMH can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the LM5642XMH is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device's reliability.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5642XMH/NOPB Overview

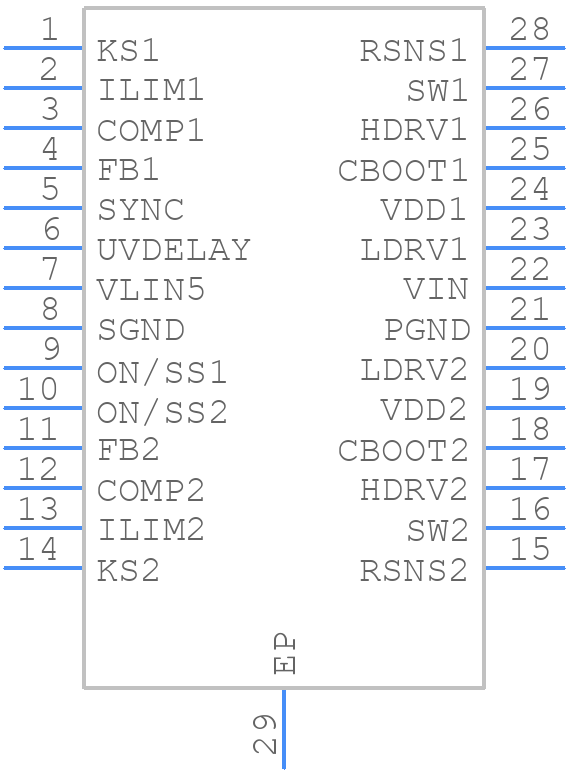

Use the download button to access the LM5642XMH/NOPB schematic symbol, PCB footprint, and 3D model.
