LM56BIMX/NOPB - Texas Instruments

Description: Dual Output Resistor-Programmable Temperature Switch

Download LM56BIMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

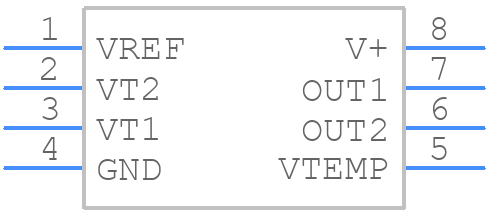

Symbol
LM56BIMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM56BIMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM56BIMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM56BIMX/NOPB Details

  • Manufacturer Part Number:

    LM56BIMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.23 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Supply Voltage-Max:

    10 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM56BIMX/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LM56BIMX/NOPB is 4.5V to 36V.
  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be placed as close to the output pin as possible.
  • The maximum output current that the LM56BIMX/NOPB can provide is 3A.
  • To protect the LM56BIMX/NOPB from overheating, ensure that the device is mounted on a heat sink with a thermal resistance of 10°C/W or less, and that the ambient temperature is within the recommended operating range.
  • Yes, the LM56BIMX/NOPB is suitable for high-reliability applications, as it is built with a proprietary BiCMOS process and has undergone rigorous testing and qualification.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM56BIMX/NOPB Overview

Use the download button to access the LM56BIMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM56B, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
