Description:Switching Voltage Regulators Automotive 36-V, 3-A synchronous converter in a QFN package with wettable flank and external pad 13-WQFN-HR -40 to 150
A good PCB layout for the LM60430AQRPKRQ1 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input capacitor is properly sized to handle the inrush current. Also, add a soft-start circuit to limit the inrush current during start-up.
The critical components that affect the device's EMI performance are the input filter capacitors, the output filter inductor, and the PCB layout. Ensure that these components are properly selected and laid out to minimize EMI radiation.
To optimize the device's efficiency, select the optimal switching frequency, output voltage, and input voltage based on your application's requirements. Also, ensure that the device is operated within its recommended operating conditions, and that the output capacitor is properly sized to minimize losses.
The key considerations for thermal design and heat sinking are the device's power dissipation, the thermal resistance of the package, and the thermal interface material. Ensure that the heat sink is properly sized and attached to the device, and that the thermal interface material is properly applied.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM60430AQRPKRQ1 Overview

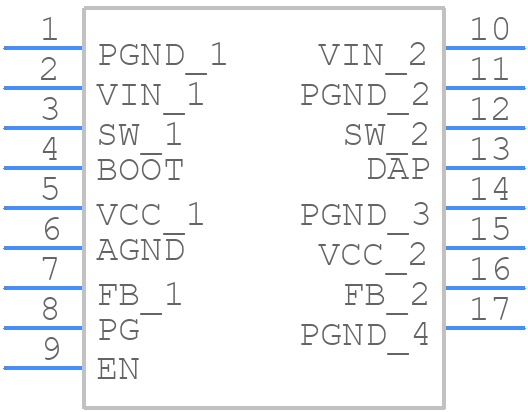

Use the download button to access the LM60430AQRPKRQ1 schematic symbol, PCB footprint, and 3D model.
