A good PCB layout for the LM60430ARPKR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, ensure that the feedback resistors are of low tolerance (e.g., 1%) and that the feedback network is properly compensated.
The maximum safe operating junction temperature for the LM60430ARPKR is 150°C. Exceeding this temperature can lead to reduced reliability and potentially cause device failure.
Yes, the LM60430ARPKR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and its manufacturing process is compliant with IATF 16949.
To troubleshoot output voltage deviations or oscillations, check the input voltage, output capacitor value and type, and feedback network components. Ensure that the device is properly decoupled, and that the PCB layout is optimized for thermal performance. Use an oscilloscope to measure the output voltage and identify any oscillations or noise.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM60430ARPKR Overview

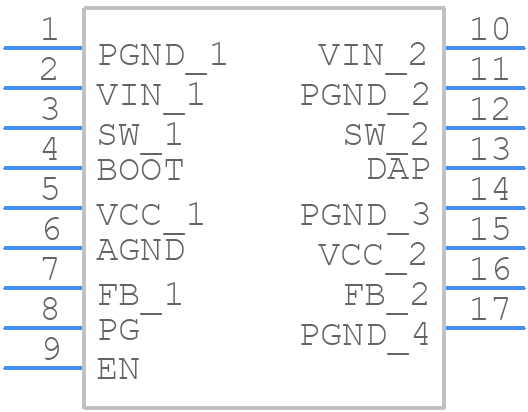

Use the download button to access the LM60430ARPKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM604,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
