- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM6134BIN
- Part Number LM6134BIN
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

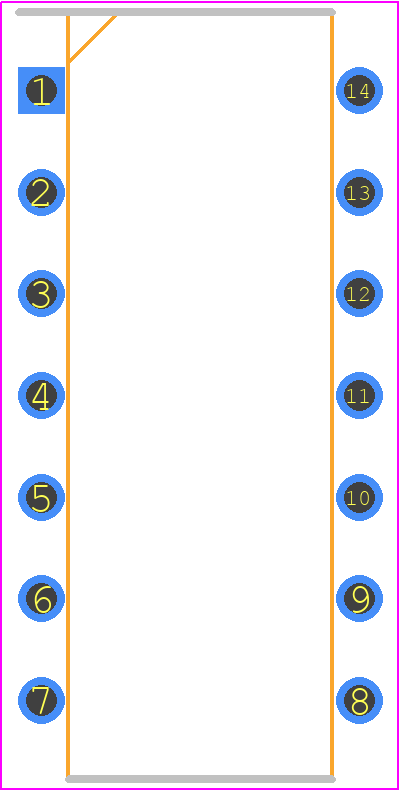

- Footprint Name Dual-In-Line Packages - NFF0014A+
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM6134BIN Details
-
Manufacturer Part Number:
LM6134BIN
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
OPERATIONAL AMPLIFIER
LM6134BIN Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing parasitic inductance and capacitance.
-
To ensure stability, follow the recommended compensation network values and layout, and ensure that the output capacitor is properly sized and placed. Additionally, avoid using long input traces, and use a low-ESR output capacitor. If oscillations occur, try adding a small series resistor (e.g., 10 ohms) between the output and the feedback pin.
-
The LM6134BIN has an absolute maximum input voltage rating of 15V, but the recommended maximum input voltage is 12V to ensure reliable operation and prevent damage to the device.
-
The LM6134BIN is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly heatsinked and that the maximum junction temperature is not exceeded. Consult the datasheet for thermal derating information.
-
The output voltage ripple can be estimated using the equation: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. Consult the datasheet for more information on output voltage ripple and how to minimize it.
Trust Checks
Community Provided
System Verified
Community Approved
LM6134BIN Overview

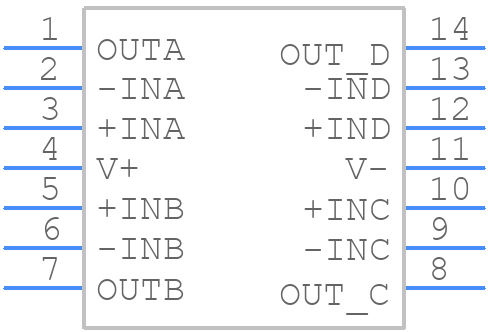

Use the download button to access the LM6134BIN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM613,
or try a keyword search, such as Operational Amplifiers
