LM6144BIM - Texas Instruments

Description: OpAmpIC

Download LM6144BIM Model

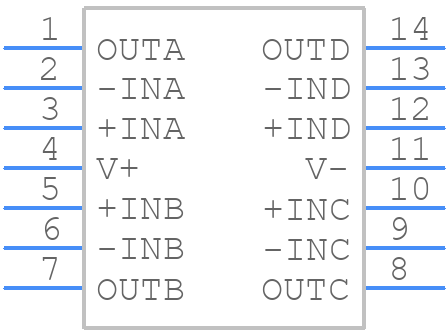

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM6144BIM - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-14N
click to zoom
3D Models
LM6144BIM - Texas Instruments  - 3D model - Other - SOIC127P600X175-14N
click to zoom

LM6144BIM Details

  • Manufacturer Part Number:

    LM6144BIM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, MS-012AB, SOIC-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1994-07-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.526 µA

  • Bias Current-Max (IIB) @25C:

    0.28 µA

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    107 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.03 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    235

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    11 V/us

  • Slew Rate-Nom:

    25 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    17000

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

LM6144BIM Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM6144BIM is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is 1.4W when the device is mounted on a 1-inch square copper pad on a 4-layer PCB. However, in practice, the maximum power dissipation can be higher or lower depending on the specific application and thermal design.
  • To minimize noise and ensure stability, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, the datasheet provides a recommended PCB layout and component placement diagram that should be followed.
  • The recommended input capacitance is 10uF to 22uF, and the recommended output capacitance is 10uF to 47uF. However, the optimal capacitance values may vary depending on the specific application and output load. It is recommended to experiment with different capacitance values to achieve the best performance.
  • The LM6144BIM has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it is still recommended to add external protection components such as TVS diodes and fuses to protect the device from voltage transients and overcurrent conditions.
  • The typical startup time of the LM6144BIM is around 10ms to 20ms, depending on the input voltage and output load. However, this time can be affected by the output capacitance and the input voltage rise time.
