- Part Number LM6172AMJFQMLV
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - NAB0008A
- Released Date Jan 11, 2017
- Last Modified Date Jun 7, 2025 4:47 AM UTC
- Pinout / Pin List Click Here (Member Only)
LM6172AMJFQMLV Details
-
Manufacturer Part Number:
LM6172AMJFQMLV
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Amplifier Type:
OPERATIONAL AMPLIFIER
LM6172AMJFQMLV Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing parasitic inductance and capacitance.
-
To ensure stability, follow the datasheet's guidelines for compensation and feedback networks. Additionally, make sure to decouple the power supply pins with adequate capacitors, and use a low-ESR capacitor for the output filter. Also, avoid using long wires or traces for the feedback network, and keep the gain-setting resistors close to the IC.
-
The maximum power dissipation of the LM6172AMJFQMLV is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating temperature and thermal resistance of the system.
-
Yes, the LM6172AMJFQMLV can be used in a single-supply configuration, but it requires additional circuitry to bias the input and output stages. The datasheet provides an example of a single-supply configuration, but it's essential to ensure that the input and output voltage ranges are within the specified limits.
-
To protect the LM6172AMJFQMLV from overvoltage, use voltage clamping devices such as TVS diodes or zener diodes on the input and output pins. For ESD protection, use ESD protection devices such as diodes or resistors in series with the input pins. Additionally, follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
System Verified
LM6172AMJFQMLV Overview

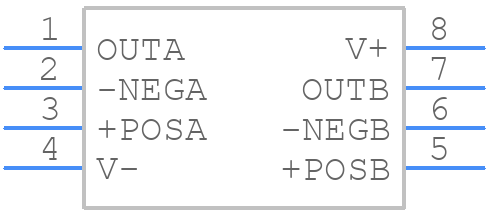

Use the download button to access the LM6172AMJFQMLV schematic symbol, PCB footprint, and 3D model.
