LM628N-6 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers

Download LM628N-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

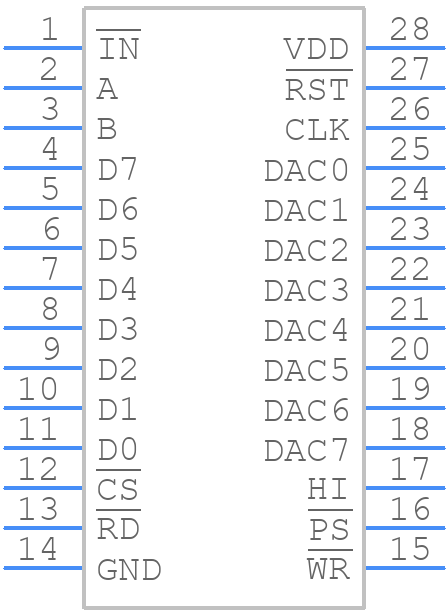

LM628N-6 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

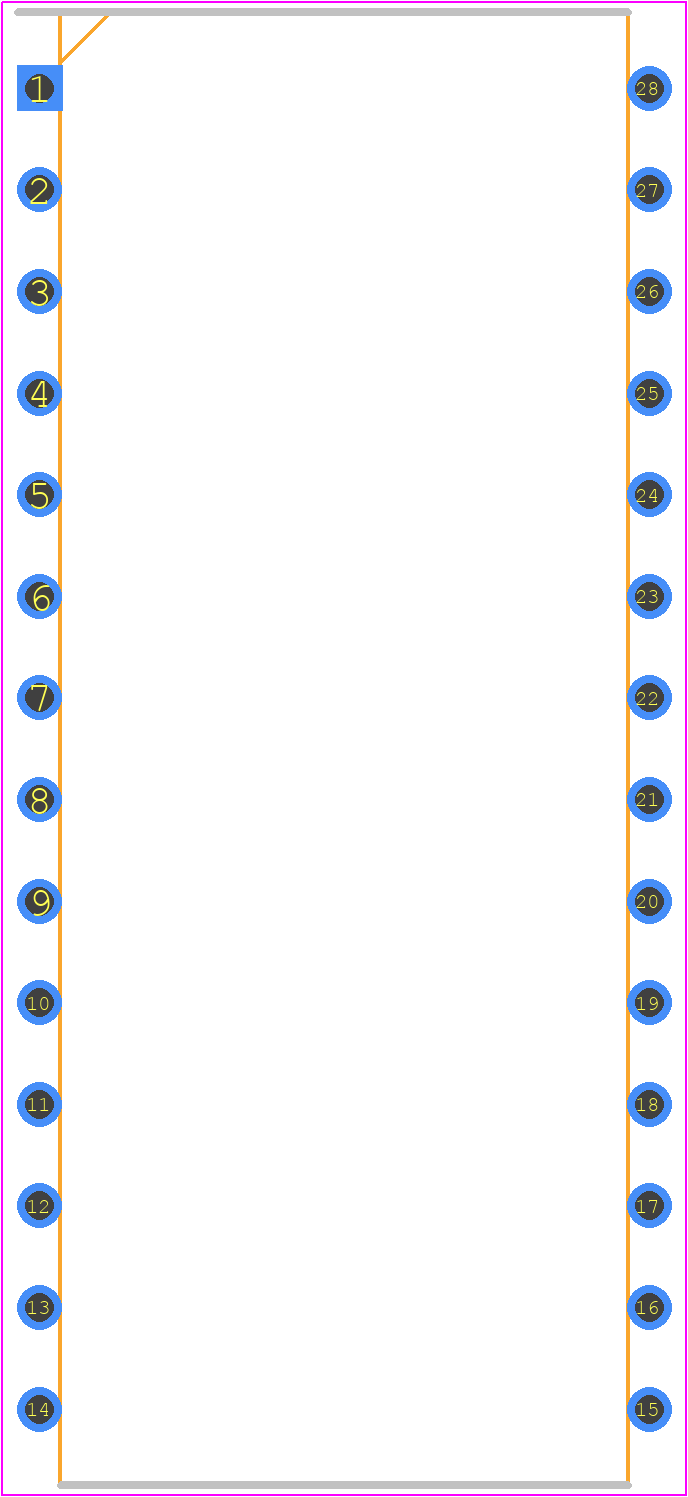

LM628N-6 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T28)
click to zoom
3D Models
LM628N-6 - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T28)
click to zoom

LM628N-6 Details

  • Manufacturer Part Number:

    LM628N-6

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    35.725 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Current-Max (Isup):

    100 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    NMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

LM628N-6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LM628N-6 is -40°C to 125°C. However, it's recommended to operate within -20°C to 85°C for optimal performance.
  • To ensure stability, make sure to follow the recommended layout and decoupling guidelines, use a stable voltage source, and add a 10nF to 100nF capacitor between the VCC and GND pins. Additionally, avoid using long traces and keep the input and output pins as close as possible to the device.
  • The recommended input voltage range for the LM628N-6 is 4.5V to 36V. However, the device can operate with input voltages as low as 3.5V, but with reduced performance and accuracy.
  • While the LM628N-6 can be used as a voltage regulator, it's not recommended due to its limited current output capability (up to 100mA) and lack of built-in short-circuit protection. Instead, consider using a dedicated voltage regulator IC like the LM317 or LM338.
  • The output voltage of the LM628N-6 can be calculated using the formula: VOUT = (R1 / R2) * (VIN - VREF), where R1 and R2 are the resistors connected to the output pin, VIN is the input voltage, and VREF is the internal reference voltage (approximately 2.5V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM628N-6 Overview

Use the download button to access the LM628N-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM628, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
