- Part Number LM63CIMA
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM63CIMA Details
-
Manufacturer Part Number:
LM63CIMA
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
3.9
-
Accuracy-Max (Cel):
3 Cel
-
Body Breadth:
3.899 mm
-
Body Height:
1.55 mm
LM63CIMA Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the LM63CIMAX near the temperature sensing point. The device should be oriented to minimize thermal gradients, and the thermal pad should be connected to a solid copper plane.
-
The LM63CIMAX has an internal calibration mechanism, but for high-accuracy applications, external calibration may be necessary. This can be done by measuring the device's output at multiple temperature points and adjusting the offset and gain accordingly.
-
The maximum cable length for the digital output of the LM63CIMAX depends on the specific application and the noise environment. As a general rule, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) to minimize noise and ensure reliable operation.
-
Yes, the LM63CIMAX is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
-
The thermal pad of the LM63CIMAX should be connected to a solid copper plane on the PCB to ensure good thermal conductivity. During PCB assembly, the thermal pad should be soldered using a soldering iron with a temperature-controlled tip to prevent damage to the device.
Trust Checks
System Verified
LM63CIMA Overview

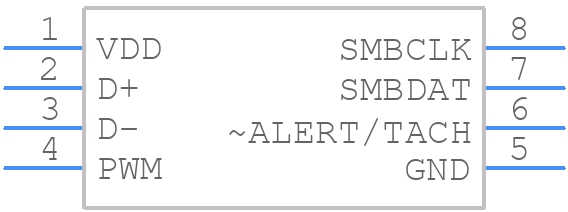

Use the download button to access the LM63CIMA schematic symbol, PCB footprint, and 3D model.
