A good PCB layout for the LM6511IM/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor's ESR should be within the recommended range, and the input capacitor should be a low-ESR type. It's also crucial to avoid over-compensating the device, as this can lead to instability.
The LM6511IM/NOPB can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range of 3.5V to 40V for optimal performance and reliability.
The LM6511IM/NOPB is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure proper heat sinking to prevent overheating. It's also recommended to derate the device's performance at high temperatures.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and soldering. Use an oscilloscope to inspect the output waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM6511IM/NOPB Overview

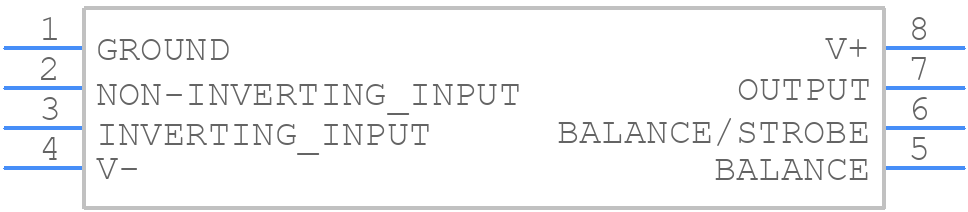

Use the download button to access the LM6511IM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM651,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
