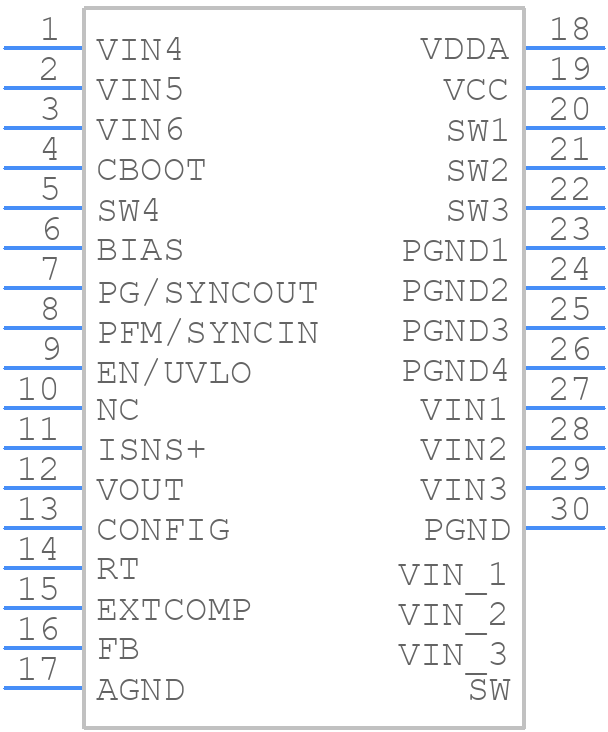

LM706A0RRXR - Texas Instruments

LM706A0RRXR Details

• Manufacturer Part Number:

  LM706A0RRXR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

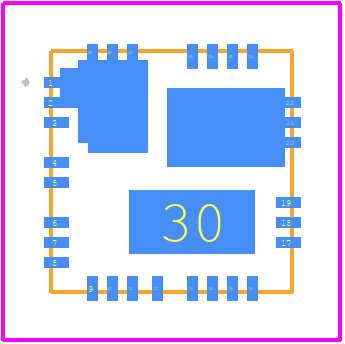

• Package Description:

  VQFN-29

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO 5V & 12V FIXED O/P VTG AVAILABLE; PFM CONTROL TECHNIQUE ALSO AVAILABLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  65 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PQCC-N29

• Length:

  6 mm

• Number of Functions:

  1

• Number of Terminals:

  29

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  36 V

• Output Voltage-Min:

  0.8 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC29(UNSPEC)

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR, 13 INCH

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2200 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  6 mm
