A good PCB layout for the LM7372IMA/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, avoid using long input traces and keep the input impedance low to prevent oscillations.
The LM7372IMA/NOPB can handle input voltages up to 42V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and prevent damage to the device.
The LM7372IMA/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Additionally, ensure good thermal design and heat sinking to prevent overheating.
To troubleshoot issues with the LM7372IMA/NOPB, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or ringing on the output. Also, verify that the compensation network is properly configured and that the PCB layout is correct. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM7372IMA/NOPB Overview

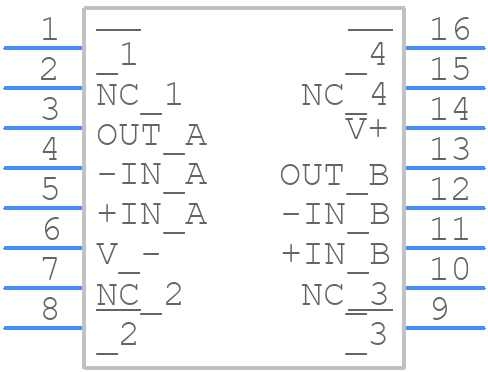

Use the download button to access the LM7372IMA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM737,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
