Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, follow the recommended compensation network values and layout, and make sure the output capacitor is properly sized and placed. Additionally, ensure the input and output voltage rails are well-regulated and decoupled, and the device is operated within its recommended operating conditions.
The maximum output current capability of the LM7372MRX is 2A, but this can be limited by the thermal performance of the package and the PCB. It's recommended to derate the output current based on the ambient temperature and the thermal resistance of the package and PCB.
The LM7372MRX is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's recommended to derate the output current and voltage based on the ambient temperature, and ensure proper thermal management to prevent overheating.
To troubleshoot issues with the LM7372MRX, use a combination of visual inspection, measurement tools such as oscilloscopes and spectrum analyzers, and simulation tools such as SPICE models. Check for proper PCB layout, component values, and soldering quality, and ensure the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM7372MRX Overview

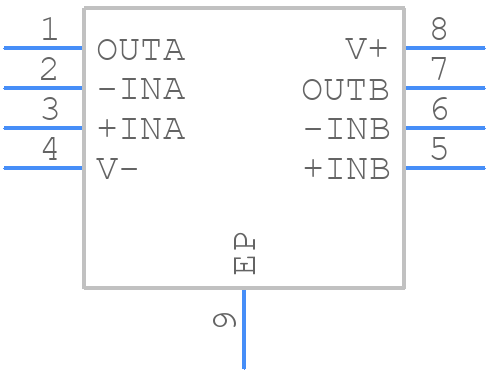

Use the download button to access the LM7372MRX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM737,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
