LM74610QDGKTQ1 - Texas Instruments

Description: TEXAS INSTRUMENTS - LM74610QDGKTQ1 - DIODE-OR CNTRL, 100V, VSSOP-8

Download LM74610QDGKTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

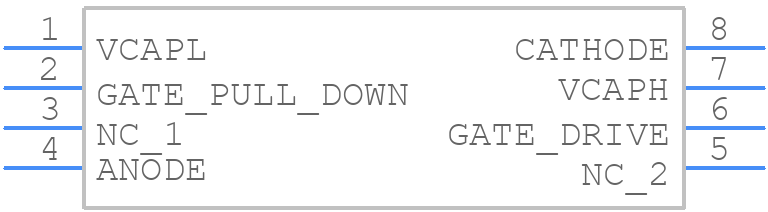

Symbol
LM74610QDGKTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM74610QDGKTQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LM74610QDGKTQ1
click to zoom
3D Models
LM74610QDGKTQ1 - Texas Instruments - 3D model - Small Outline Packages - LM74610QDGKTQ1
click to zoom

LM74610QDGKTQ1 Details

  • Manufacturer Part Number:

    LM74610QDGKTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    0.48 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    0.48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM74610QDGKTQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM74610QDGKTQ1 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stability, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high capacitance value. Also, add a 10nF-100nF ceramic capacitor in parallel with the output capacitor to filter high-frequency noise.
  • A 10uF-22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. This value provides a good balance between filtering and stability. Avoid using electrolytic capacitors as they may not provide sufficient filtering.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended operating range. You can also add a voltage clamp or a TVS diode to protect the device from voltage transients.
  • The LM74610QDGKTQ1 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 100°C to ensure a sufficient margin for thermal dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM74610QDGKTQ1 Overview

Use the download button to access the LM74610QDGKTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM746, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
