A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using thermal vias and a solid ground plane can help to dissipate heat more efficiently.
To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal management system, and ensure that the device is operated within its recommended operating conditions. Additionally, using a thermistor or a temperature sensor can help to monitor the device temperature and prevent overheating.
To mitigate EMI and RFI, it is essential to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to the ground plane, and using EMI filters or ferrite beads on the input and output lines. Additionally, using a common-mode choke and a differential-mode filter can help to reduce EMI and RFI emissions.
To optimize the device for low power consumption, it is essential to operate the device at the lowest possible voltage, use a low-power mode or shutdown mode when not in use, and minimize the output current. Additionally, using a power-saving mode, reducing the switching frequency, and using a low-power oscillator can help to reduce power consumption.
To ensure device reliability and longevity, it is essential to operate the device within its recommended operating conditions, avoid overheating, and minimize electrical stress. Additionally, using a suitable PCB material, following proper soldering and assembly techniques, and using a conformal coating can help to improve device reliability and longevity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74701QDDFRQ1 Overview

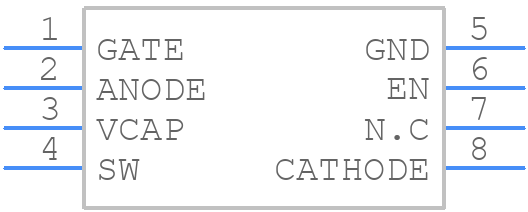

Use the download button to access the LM74701QDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM747,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
