Description:Power Management Specialized - PMIC Automotive, low IQ ideal diode controller with active rectification and load dump protection 12-WSON -40 to 125
Texas Instruments provides a recommended PCB layout in the LM74720QDRRRQ1 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to keep the thermal pad away from any high-current paths.
The LM74720QDRRRQ1 requires a specific power-up sequence to ensure proper operation. The device should be powered up with the EN pin high, and the VCC pin should be powered up before the VIN pin. Additionally, the device should be configured by setting the appropriate registers and pins according to the application requirements.
The LM74720QDRRRQ1 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
The LM74720QDRRRQ1 has built-in overvoltage and undervoltage protection. However, it's recommended to add external protection circuits to handle overvoltage and undervoltage conditions, such as using a voltage supervisor or a crowbar circuit to protect the device from voltage transients.
The LM74720QDRRRQ1 is a sensitive device and requires proper ESD protection. It's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the device from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74720QDRRRQ1 Overview

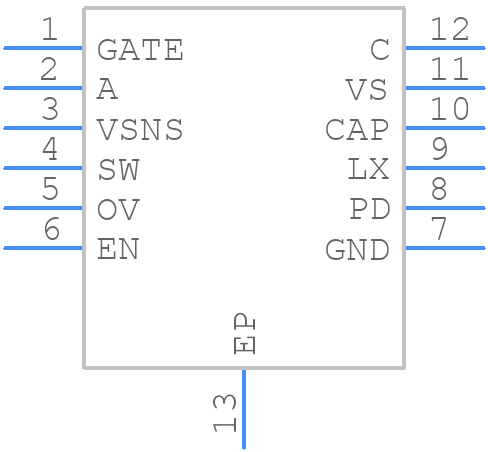

Use the download button to access the LM74720QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM747,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
