Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The LM74722QDRRRQ1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high power levels.
The recommended input capacitance is 10uF to 22uF, and the recommended output capacitance is 10uF to 47uF. However, the optimal capacitance values may vary depending on the specific application and operating conditions.
Troubleshooting issues with the LM74722QDRRRQ1 typically involves checking the PCB layout, ensuring proper decoupling and bypassing, verifying the input and output voltage levels, and checking for any signs of overheating. Texas Instruments also provides application notes and technical support resources to help with troubleshooting.
Yes, the LM74722QDRRRQ1 is compatible with lead-free soldering processes, and Texas Instruments provides guidance on lead-free soldering in their application notes and datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74722QDRRRQ1 Overview

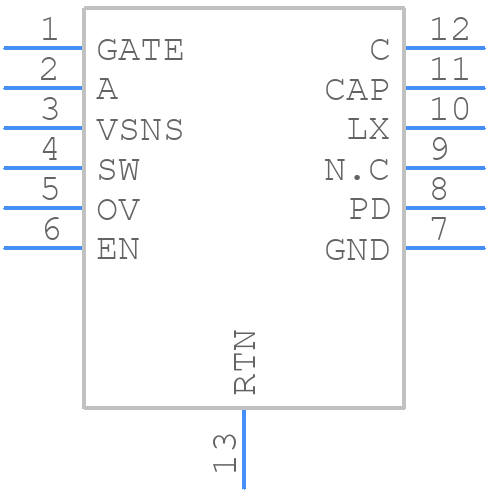

Use the download button to access the LM74722QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM747,
or try a keyword search, such as Power Management Circuits
