SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
65 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM74801QDRRRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device temperature.
The quiescent current of the LM74801QDRRRQ1 is relatively low, which helps to minimize power consumption and extend battery life. However, the actual impact on battery life depends on the specific application, battery capacity, and usage patterns. Engineers should consider the device's quiescent current in their power budgeting and battery life calculations.
To troubleshoot issues with the output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The LM74801QDRRRQ1 is designed to meet various EMI and EMC standards, but engineers should still take precautions to minimize electromagnetic interference. This includes using proper PCB layout techniques, shielding, and filtering, as well as following good design practices for electromagnetic compatibility.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74801QDRRRQ1 Overview

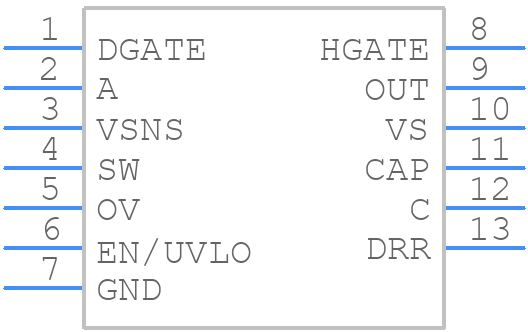

Use the download button to access the LM74801QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM748,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
