A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device temperature within the recommended range.
The limited short-circuit current rating of the LM74810QDRRRQ1 means that it's essential to ensure that the output current is limited to prevent damage to the device. This can be achieved through the use of current-limiting resistors or fuses, and by designing the system to prevent excessive current draw.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The power-on reset (POR) timing of the LM74810QDRRRQ1 is critical to ensure that the device starts up correctly. The POR timing is specified in the datasheet, and it's essential to ensure that the power supply ramps up slowly enough to allow the device to reset properly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74810QDRRRQ1 Overview

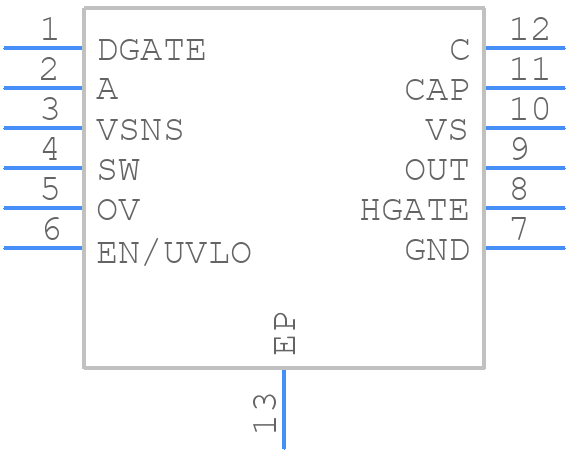

Use the download button to access the LM74810QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM748,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
