Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The LM74900QRGERQ1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high currents.
The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor (such as X5R or X7R) is recommended. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
Use an oscilloscope to measure the input and output voltages, and check for any signs of oscillation or noise. Verify that the input voltage is within the recommended range, and that the device is properly thermally managed. Check the PCB layout for any errors or omissions, and consult the datasheet and application notes for troubleshooting guidance.
Yes, the LM74900QRGERQ1 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments and perform additional testing and validation to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74900QRGERQ1 Overview

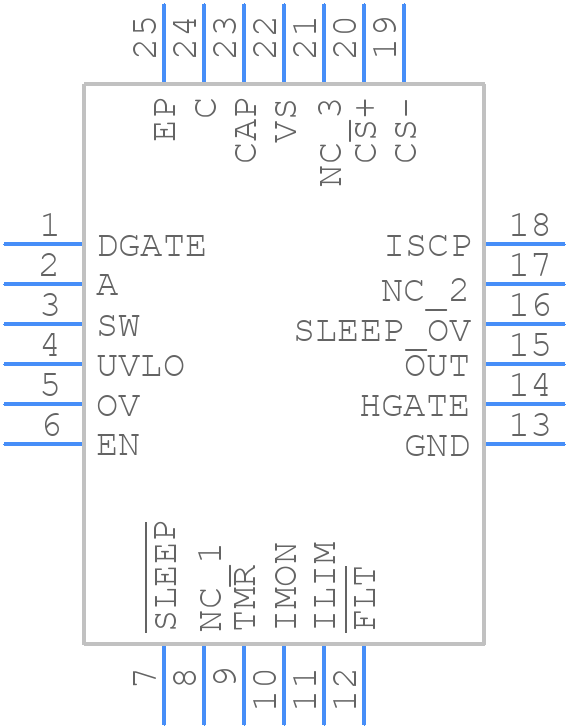

Use the download button to access the LM74900QRGERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM749,
or try a keyword search, such as Power Management Circuits
