Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The LM74930QRGERQ1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high currents.
The LM74930QRGERQ1 has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Use a combination of oscilloscope measurements, voltage and current monitoring, and thermal imaging to identify the root cause of the issue. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking support from Texas Instruments or a qualified engineer.
The LM74930QRGERQ1 is a automotive-grade device, but it's still important to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards for the specific application. Consult the datasheet and relevant industry standards for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74930QRGERQ1 Overview

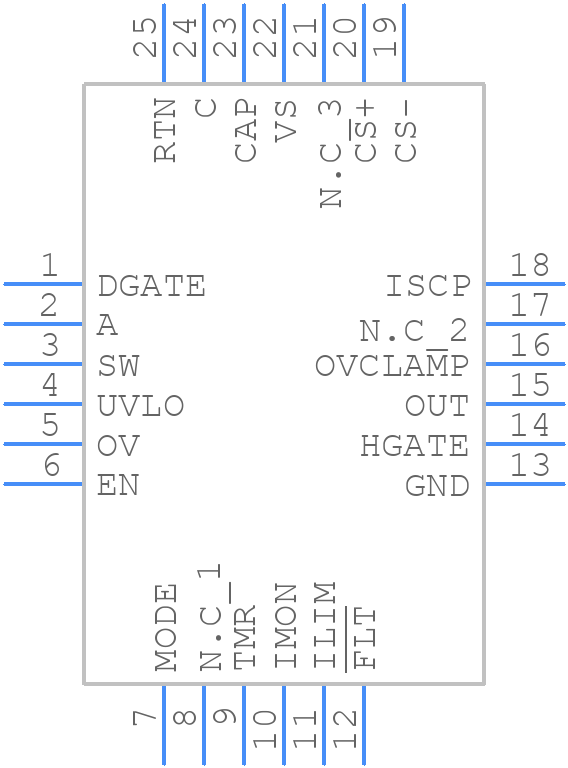

Use the download button to access the LM74930QRGERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM749,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
