A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-3 layer board with a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink.
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended operating temperature range, use a heat sink or thermal pad, and follow proper PCB layout guidelines for thermal management.
To mitigate EMI and RFI, use a shielded enclosure, keep the device away from antennas and other EMI sources, use a common-mode choke or ferrite bead on the input, and ensure good PCB layout practices such as separating analog and digital grounds.
Select input and output capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. The capacitor values should be chosen based on the specific application requirements and the device's recommended operating conditions.
To ensure overcurrent protection, use a current-sensing resistor, a fuse, or a PTC thermistor in series with the input, and consider using a dedicated overcurrent protection IC. The device also has a built-in overcurrent protection feature that can be enabled.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM76202QPWPRQ1 Overview

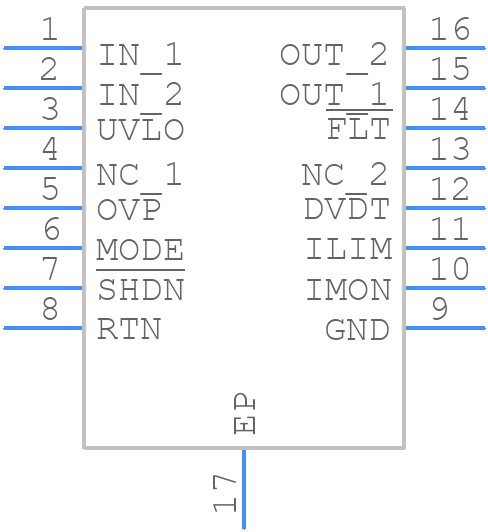

Use the download button to access the LM76202QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM762,
or try a keyword search, such as Power Management Circuits
