LM76CHMX-5/NOPB - Texas Instruments

Description: Board Mount Temperature Sensors A 926-LM76CHM-5/NOPB

Download LM76CHMX-5/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

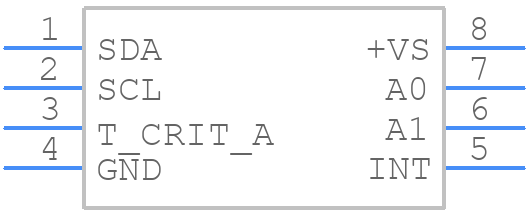

LM76CHMX-5/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM76CHMX-5/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM76CHMX-5/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM76CHMX-5/NOPB Details

  • Manufacturer Part Number:

    LM76CHMX-5/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.45 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM76CHMX-5/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device to ensure optimal thermal performance.
  • The thermal shutdown feature is enabled by default, but it can be disabled by connecting the TSD pin to VCC. When enabled, the device will shut down when the junction temperature exceeds 150°C. You should ensure that your design can handle the shutdown and restart of the device without causing system instability.
  • Texas Instruments recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher as the input capacitor. This will help to filter out noise and ensure stable operation.
  • Yes, the LM76CHMX-5/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
  • To ensure EMC, Texas Instruments recommends using a shielded enclosure, keeping the device away from noise sources, and using a common-mode choke or ferrite bead on the input lines. Additionally, you should ensure that your PCB layout and design meet the requirements of the relevant EMC standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM76CHMX-5/NOPB Overview

Use the download button to access the LM76CHMX-5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM76C, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
