A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed to minimize noise and ripple.
Operating the device outside of the recommended temperature range can affect its performance, reliability, and lifespan. It may lead to reduced accuracy, increased noise, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range for optimal performance and reliability.
To troubleshoot issues with the device, start by verifying the PCB layout and component selection. Check for proper decoupling, noise filtering, and signal integrity. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Using a different capacitor type or value than recommended can affect the device's performance, stability, and accuracy. It's essential to follow the recommended capacitor values and types to ensure optimal performance and minimize the risk of oscillations or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM80CIMTX-3/NOPB Overview

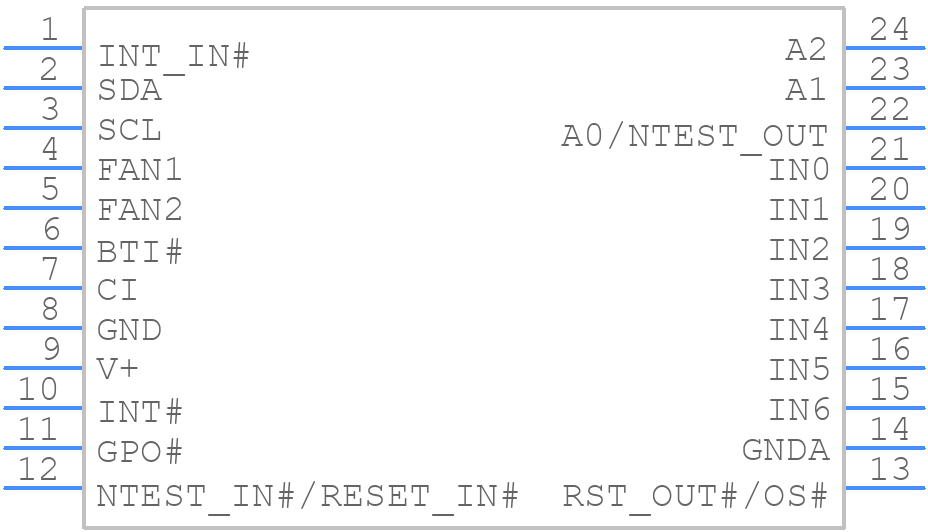

Use the download button to access the LM80CIMTX-3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM80C,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
