Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to use a thermal relief pattern on the PCB to reduce thermal resistance.
To ensure accurate temperature measurement, it's essential to follow proper PCB layout and thermal design guidelines. Additionally, the device should be calibrated during the manufacturing process, and the user should consider the thermal gradient and thermal resistance of the system.
The maximum junction temperature (Tj) that the LM89-1DIMM/NOPB can withstand is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
Yes, the LM89-1DIMM/NOPB is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To handle the noise sensitivity of the LM89-1DIMM/NOPB, it's recommended to use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding noise filters. Additionally, the user should consider using shielding and electromagnetic interference (EMI) filters to reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM89-1DIMM/NOPB Overview

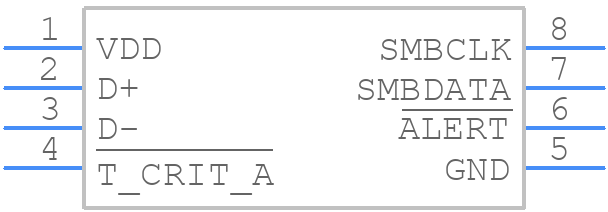

Use the download button to access the LM89-1DIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM89-,
or try a keyword search, such as Temperature Sensors
