LM9036M-5.0/NOPB - Texas Instruments

Description: Texas Instruments LM9036M-5.0/NOPB, LDO Voltage Regulator, 0.1mA, 5 V, Maximum of 40 Vin, 8-Pin SOIC

Download LM9036M-5.0/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

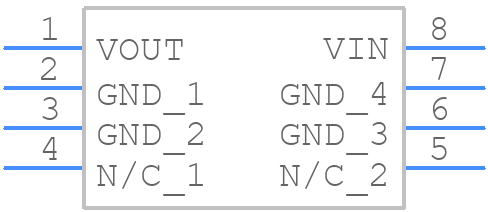

LM9036M-5.0/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM9036M-5.0/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM9036M-5.0/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM9036M-5.0/NOPB Details

  • Manufacturer Part Number:

    LM9036M-5.0/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.4 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    55 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.03%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.91 mm

LM9036M-5.0/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM9036M-5.0/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground pins.
  • The LM9036M-5.0/NOPB can handle input voltages up to 12V, but it's recommended to keep the input voltage within the recommended range of 4.5V to 10V for optimal performance and to prevent damage to the device.
  • The LM9036M-5.0/NOPB is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating.
  • The output voltage of the LM9036M-5.0/NOPB is fixed at 5.0V, but it can be adjusted using an external resistor divider network. The output voltage can be calculated using the formula: Vout = 5.0V * (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
