A good PCB layout for the LM9036MM-3.3/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within its recommended operating conditions.
The LM9036MM-3.3/NOPB can handle input voltages up to 15V, but it's recommended to operate the device within its recommended input voltage range of 3.5V to 12V for optimal performance and reliability.
The LM9036MM-3.3/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
To troubleshoot issues with the LM9036MM-3.3/NOPB, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check for any noise or oscillations on the input and output lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM9036MM-3.3/NOPB Overview

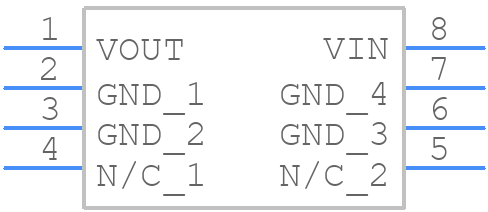

Use the download button to access the LM9036MM-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM903,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
