A good PCB layout for the LM9036QM-5.0/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input impedance. It's also crucial to minimize the parasitic inductance and capacitance in the layout.
The LM9036QM-5.0/NOPB has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow to keep the device temperature below 125°C. A thermal pad on the bottom of the package helps to dissipate heat, and a thermal interface material can be used to improve heat transfer.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to inspect the output voltage ripple and noise. Also, ensure that the PCB layout and component selection meet the recommended guidelines.
To minimize EMI and EMC issues, it's essential to follow proper PCB layout and shielding techniques. Use a shielded enclosure, and ensure that the input and output cables are properly filtered and shielded. Additionally, use a common-mode choke or ferrite bead to reduce common-mode noise, and consider using a spread-spectrum clock to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM9036QM-5.0/NOPB Overview

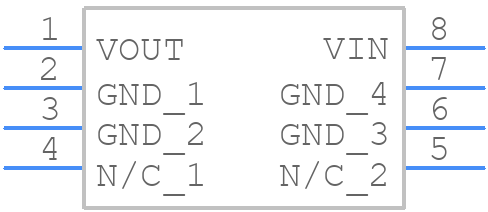

Use the download button to access the LM9036QM-5.0/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM903,
or try a keyword search, such as Linear Regulator ICs
