LM95214CISD/NOPB - Texas Instruments

Description: ±2°C Quad Remote and Local Temperature Sensor with SMBus Interface

Download LM95214CISD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

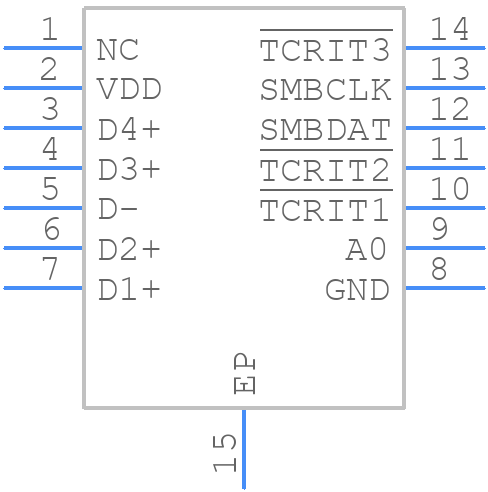

Symbol
LM95214CISD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95214CISD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LM95214CISD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LM95214CISD/NOPB Details

  • Manufacturer Part Number:

    LM95214CISD/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    14

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM95214CISD/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the thermal pad to the ground plane is recommended for optimal thermal performance.
  • Use a low-pass filter or a shielded cable to connect the sensor to the microcontroller, and consider using a noise-reducing capacitor on the VCC pin.
  • The maximum cable length for the I2C interface is approximately 10 meters, but this can be extended using I2C bus extenders or repeaters.
  • Yes, the LM95214CISD/NOPB is rated for operation up to 125°C, but ensure that the PCB and surrounding components can also withstand the high temperature.
  • Use a precision temperature reference and a calibration routine to adjust the sensor's offset and gain to achieve high accuracy.
