LM95214CISDX/NOPB - Texas Instruments

Description: ±2°C Quad Remote and Local Temperature Sensor with SMBus Interface

Download LM95214CISDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

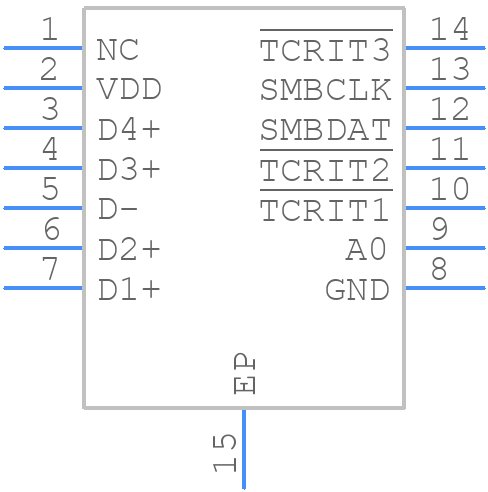

LM95214CISDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95214CISDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LM95214CISDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LM95214CISDX/NOPB Details

  • Manufacturer Part Number:

    LM95214CISDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    14

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM95214CISDX/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the thermal pad to the ground plane is recommended for optimal thermal performance.
  • Ensure that the device is properly calibrated, use a high-accuracy voltage reference, and minimize noise on the power supply and signal lines to ensure accurate temperature measurements.
  • The maximum cable length for the I2C interface is dependent on the capacitance of the cable and the clock frequency. As a general guideline, a cable length of up to 10 meters is recommended.
  • Yes, the LM95214CISDX/NOPB is designed to operate in high-vibration environments. However, it is recommended to follow proper PCB mounting and screwing procedures to ensure the device is securely attached to the PCB.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the I2C lines and power supply lines to protect the LM95214CISDX/NOPB from electrostatic discharge.
