LM95235CIMMX/NOPB - Texas Instruments

Description: Board Mount Temperature Sensors A 926-LM95235CIMM/NOPB

Download LM95235CIMMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

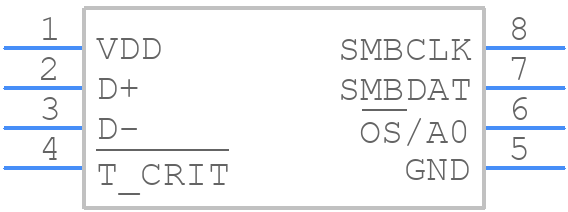

LM95235CIMMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95235CIMMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM95235CIMMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM95235CIMMX/NOPB Details

  • Manufacturer Part Number:

    LM95235CIMMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    IT HAS ACCURACY 2 DEGREE CELCIUS

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    90 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM95235CIMMX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA477, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The LM95235CIMMX/NOPB has a built-in calibration mechanism. Refer to the calibration procedure outlined in the datasheet, which involves writing specific values to the calibration registers to achieve high accuracy.
  • The maximum cable length for the SMBus interface depends on the system design and noise environment. As a general guideline, Texas Instruments recommends keeping the cable length below 10 inches (25 cm) to ensure reliable communication.
  • Yes, the LM95235CIMMX/NOPB is designed to support hot-swap applications. It has built-in protection against voltage and current surges, and can withstand the stresses associated with hot-swapping.
  • The LM95235CIMMX/NOPB's thermal diode has a non-linear and non-ideal response. To handle this, use the provided thermal diode model in the datasheet, which includes coefficients for temperature calculation. You can also use the built-in thermal diode linearization feature to improve accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM95235CIMMX/NOPB Overview

Use the download button to access the LM95235CIMMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM952, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
