Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
Proper power supply decoupling is crucial for the LM98714. Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close to the device as possible, and consider adding additional decoupling capacitors on the input and output pins. Also, ensure the power supply is stable and within the recommended operating range.
While the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the voltage rating of the specific package and the operating conditions. In general, it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
To troubleshoot issues with the LM98714, start by verifying the power supply and decoupling, then check the input and output signals using an oscilloscope. Ensure the device is properly configured and that the input signals are within the recommended range. If issues persist, consult the datasheet and application notes or contact Texas Instruments support for further assistance.
The LM98714 is rated for operation up to 125°C, but it's essential to consider the specific application and operating conditions. Ensure the device is properly heatsinked, and consider derating the device's performance at high temperatures. Consult the datasheet and application notes for more information on thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM98714BCMT/NOPB Overview

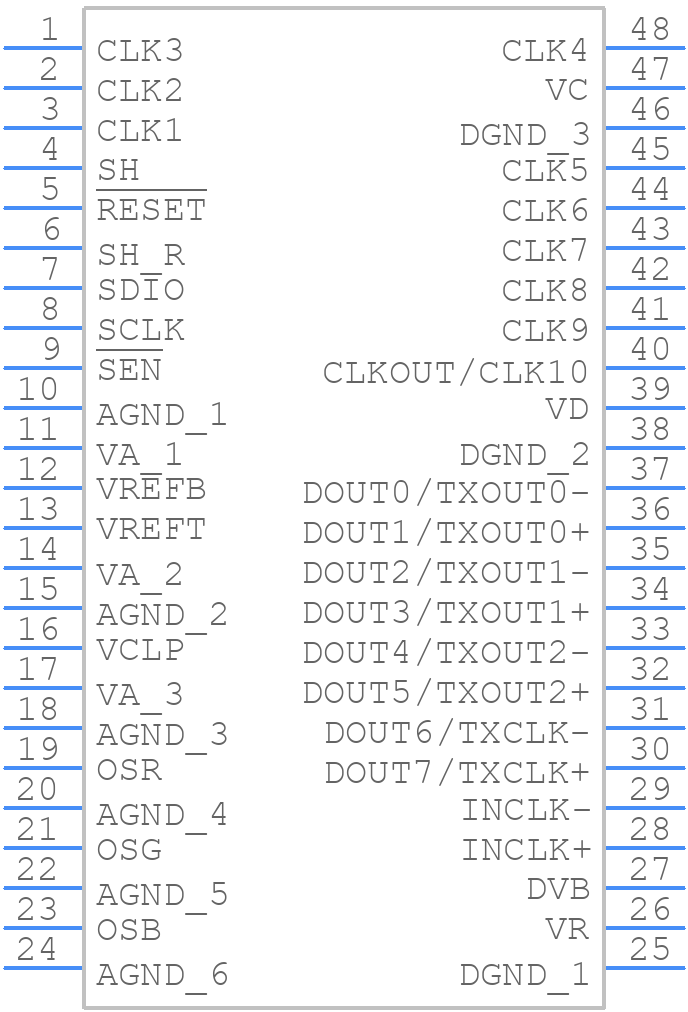

Use the download button to access the LM98714BCMT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM987,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
