LM99CIMM/NOPB - Texas Instruments

Description: Remote and Local Temperature Sensor with TruTherm Technology and SMBus Interface

Download LM99CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

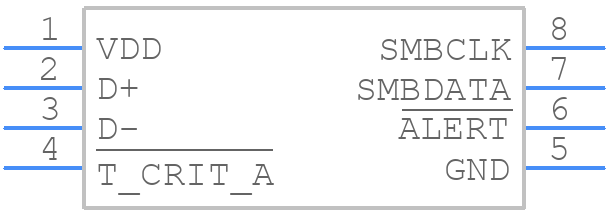

Symbol
LM99CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM99CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP-8-1
click to zoom
3D Models
LM99CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - VSSOP-8-1
click to zoom

LM99CIMM/NOPB Details

  • Manufacturer Part Number:

    LM99CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    1.7 mA

  • Operating Temperature-Max:

    85 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.85 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM99CIMM/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device to ensure optimal thermal performance. A detailed layout guide can be found in the application note 'LM99 Thermal Layout Guidelines' (SLUA271).
  • To ensure accurate temperature measurement, it is essential to calibrate the device, use a high-accuracy voltage reference, and minimize noise and thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensing point, and the thermal interface material should be chosen carefully to minimize thermal resistance.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage clamp to ensure that the voltage on the VCC pin does not exceed the maximum rating.
  • Yes, the LM99 can operate with a 3.3V supply voltage. However, the device's accuracy and linearity may be affected at lower supply voltages. It is recommended to consult the datasheet and application notes for more information on operating the device at 3.3V.
  • The LM99 output voltage range is 0.25V to 2.95V. To handle this range, it is recommended to use a voltage buffer or an ADC with a suitable input range to ensure accurate temperature measurement. Additionally, the output voltage can be scaled or shifted using external resistors or amplifiers to match the input range of the ADC or microcontroller.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM99CIMM/NOPB Overview

Use the download button to access the LM99CIMM/NOPB schematic symbol, PCB footprint, and 3D model.
