LMC567CM/NOPB - Texas Instruments

Description: Low power tone decoder,LMC567CM SOIC8

Download LMC567CM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

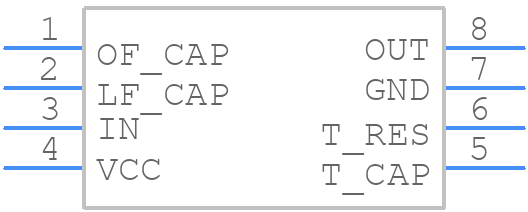

LMC567CM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC567CM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC (8)(Height=1.75mm)
click to zoom
3D Models
LMC567CM/NOPB - Texas Instruments - 3D model - Small Outline Packages - SOIC (8)(Height=1.75mm)
click to zoom

LMC567CM/NOPB Details

  • Manufacturer Part Number:

    LMC567CM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SO-8
