LMC6084AIM - Texas Instruments

Description: Operational Amplifier

Download LMC6084AIM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

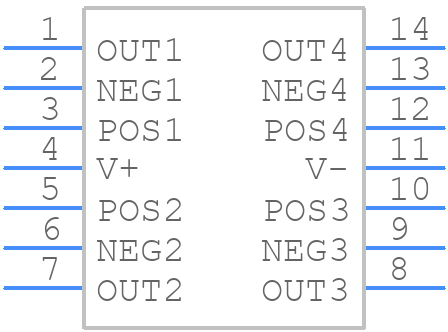

LMC6084AIM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC6084AIM - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-14N
click to zoom
3D Models
LMC6084AIM - Texas Instruments - 3D model - Other - SOIC127P600X175-14N
click to zoom

LMC6084AIM Details

  • Manufacturer Part Number:

    LMC6084AIM

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000004 µA

  • Bias Current-Max (IIB) @25C:

    0.000004 µA

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    350000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.6 V/us

  • Slew Rate-Nom:

    1.5 V/us

  • Supply Current-Max:

    4 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm

LMC6084AIM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in their application note SLVAE04, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The values of Rf and Rg depend on the desired gain, bandwidth, and output impedance of the amplifier. Texas Instruments provides a gain calculation tool and a resistor selection guide in their datasheet and application notes to help engineers choose the correct values for their specific application.
  • The maximum power dissipation of the LMC6084AIM is dependent on the package type and the ambient temperature. Engineers should ensure that the device is properly heat-sinked and that the maximum junction temperature (Tj) is not exceeded. Texas Instruments provides thermal resistance and power dissipation calculations in their datasheet to help engineers ensure that the device does not overheat.
  • Engineers should follow proper ESD handling and assembly procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, the device should be handled by the body only, and not by the leads, to prevent damage. Texas Instruments provides ESD handling and assembly guidelines in their datasheet and application notes.
  • Common pitfalls to avoid include inadequate power supply decoupling, poor layout and routing, and insufficient thermal management. Engineers should follow best practices for PCB design, such as using a solid ground plane, minimizing trace lengths, and using thermal vias to ensure reliable and manufacturable designs. Texas Instruments provides PCB design guidelines and checklists in their application notes to help engineers avoid common pitfalls.
