LMC7221BIM5 - Texas Instruments

Description: Analog Comparators Low power, high voltage comparator with open-drain output 5-SOT-23 -40 to 85

Download LMC7221BIM5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

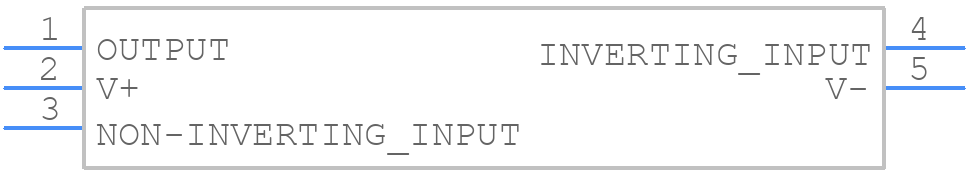

LMC7221BIM5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC7221BIM5 - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DBV0005A
click to zoom
3D Models
LMC7221BIM5 - Texas Instruments - 3D model - SOT23 (5-Pin) - DBV0005A
click to zoom

LMC7221BIM5 Details

  • Manufacturer Part Number:

    LMC7221BIM5

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-23

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1999-09-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    4e-8 µA

  • Bias Current-Max (IIB) @25C:

    4e-7 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e0

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7000 ns

  • Seated Height-Max:

    1.22 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.014 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.953 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

LMC7221BIM5 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LMC7221BIM5 involves keeping the input and output pins as close as possible to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to place a 0.1uF bypass capacitor between the VCC pin and the GND pin.
  • To ensure the stability of the LMC7221BIM5, it is recommended to use a minimum of 10uF capacitor at the output, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum input voltage that the LMC7221BIM5 can handle is 12V. Exceeding this voltage may cause damage to the device.
  • The LMC7221BIM5 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures.
  • To troubleshoot issues with the LMC7221BIM5, check the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are properly sized. Also, check for any signs of overheating or physical damage to the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LMC7221BIM5 Overview

Use the download button to access the LMC7221BIM5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC72, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
