Texas Instruments recommends a compact layout with the LMC7221BIM5X placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. The device should be placed on a solid ground plane, and the input and output traces should be kept short and away from noise sources.
The LMC7221BIM5X operates within a recommended temperature range of -40°C to 125°C, and a supply voltage range of 2.7V to 5.5V. Ensure that the device is operated within these ranges to prevent damage or malfunction. Additionally, follow the recommended power-up and power-down sequences to prevent latch-up or other issues.
The LMC7221BIM5X can drive capacitive loads up to 1000pF. However, the device's performance may be affected by the capacitive load, and the user should ensure that the load is within the recommended range to maintain stability and accuracy.
To reduce noise and EMI, use a solid ground plane, keep the input and output traces short and away from noise sources, and use shielding or guard rings around the device. Additionally, use a low-pass filter or ferrite bead to filter out high-frequency noise on the power supply lines.
The typical settling time of the LMC7221BIM5X is around 1.5μs to 2.5μs, depending on the output voltage and capacitive load. However, this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC7221BIM5X Overview

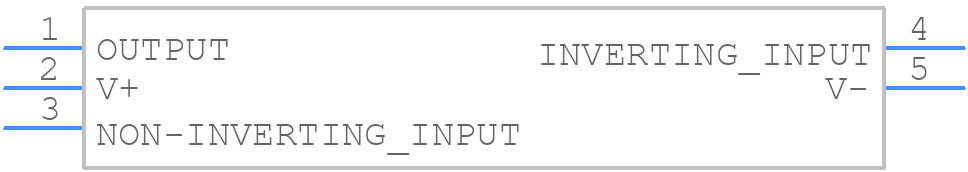

Use the download button to access the LMC7221BIM5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC72,
or try a keyword search, such as Comparators
