LMD18200-2D/883 - Texas Instruments

LMD18200-2D/883 Details

• Manufacturer Part Number:

  LMD18200-2D/883

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Active

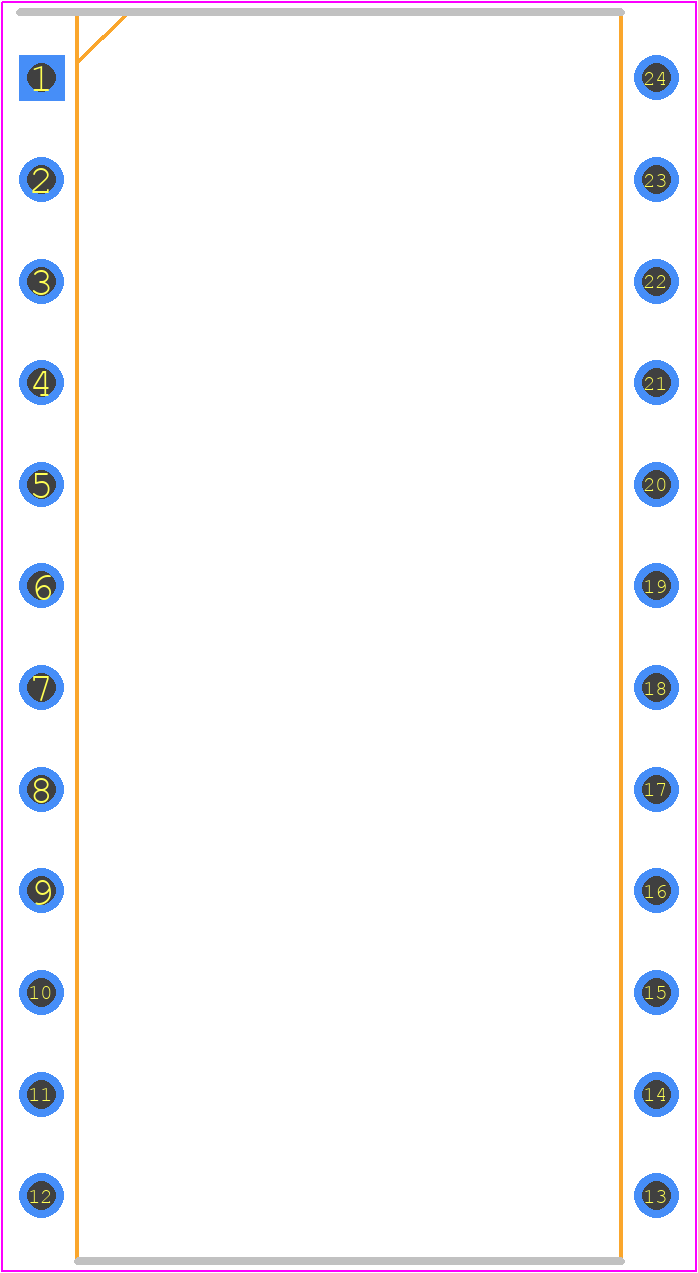

• Part Package Code:

  DIP

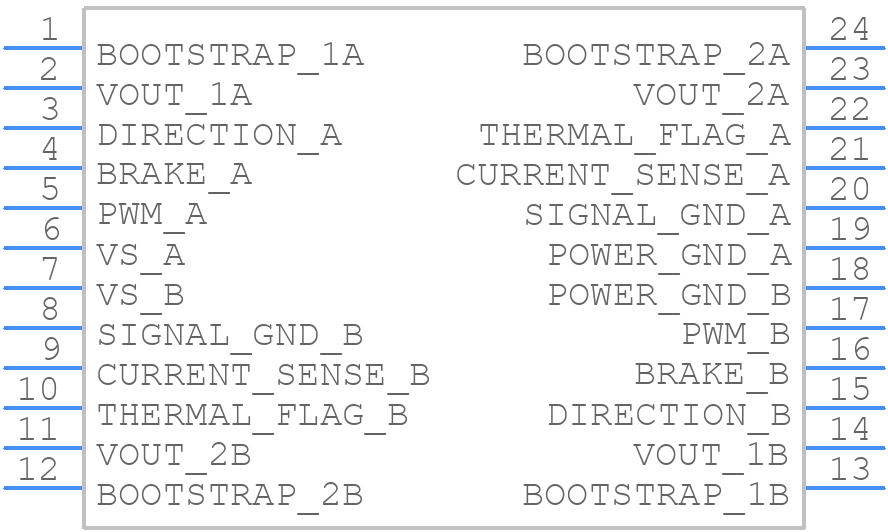

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Built-in Protections:

  TRANSIENT; THERMAL; UNDER VOLTAGE

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HB BASED PERIPHERAL DRIVER WITH PWM

• JESD-30 Code:

  R-CDIP-T24

• Length:

  31.24 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Current-Max:

  6 A

• Output Peak Current Limit-Nom:

  6 A

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  25 mA

• Supply Voltage-Max:

  55 V

• Supply Voltage-Min:

  12 V

• Supply Voltage-Nom:

  42 V

• Supply Voltage1-Max:

  55 V

• Supply Voltage1-Min:

  12 V

• Surface Mount:

  NO

• Technology:

  BCDMOS

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
