LMD18245T - Texas Instruments

LMD18245T Details

• Manufacturer Part Number:

  LMD18245T

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Pin Count:

  3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1995-01-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  CONTAINS DC MOTOR DRIVER

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  R-XZFM-T15

• JESD-609 Code:

  e0

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6 A

• Package Body Material:

  UNSPECIFIED

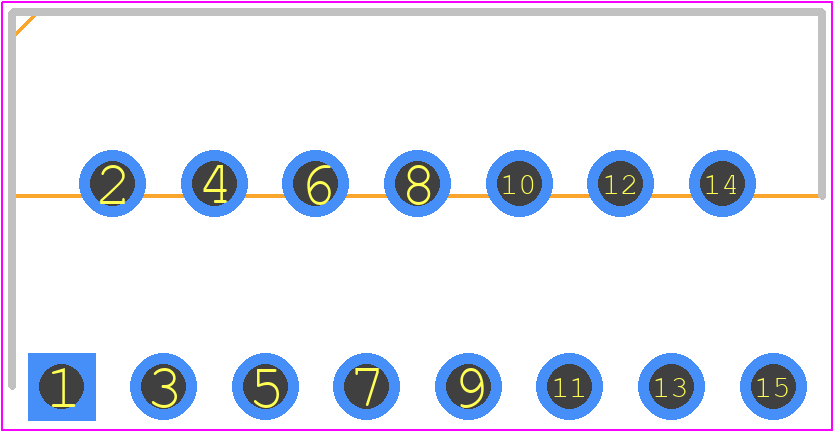

• Package Code:

  ZFM

• Package Equivalence Code:

  ZIP15,.2,.17TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max (Isup):

  15 mA

• Supply Voltage-Max (Vsup):

  55 V

• Supply Voltage-Min (Vsup):

  12 V

• Supply Voltage-Nom (Vsup):

  42 V

• Surface Mount:

  NO

• Technology:

  BCDMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG
