LME49810TB/NOPB - Texas Instruments

Description: Texas Instruments LME49810TB/NOPB Audio Amplifier IC, Class-AB 110dB, 15-Pin TB

Download LME49810TB/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

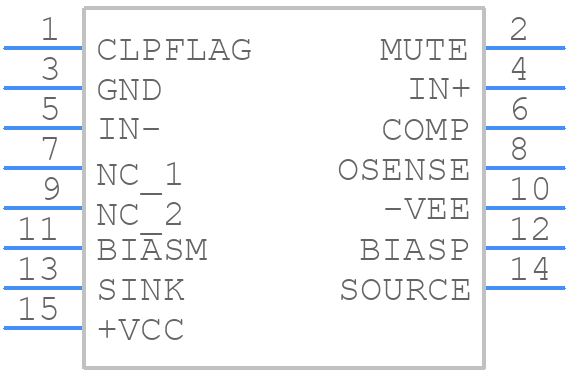

LME49810TB/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

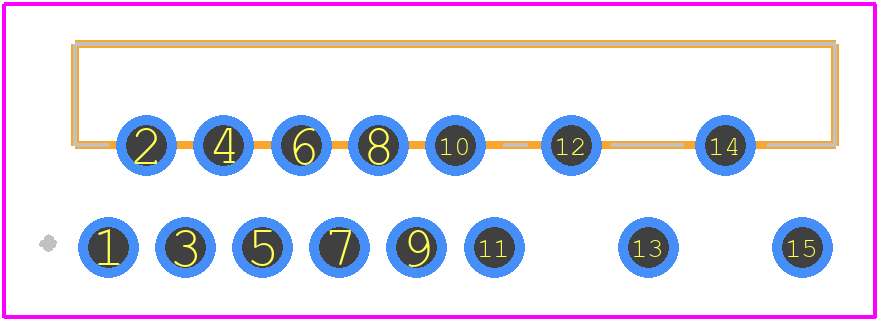

LME49810TB/NOPB - Texas Instruments PCB footprint - Other - Other - LME49810TB/NOPB-4
click to zoom
3D Models
LME49810TB/NOPB - Texas Instruments - 3D model - Other - LME49810TB/NOPB-4
click to zoom

LME49810TB/NOPB Details

  • Manufacturer Part Number:

    LME49810TB/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, FM-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.1,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    20 V

  • Surface Mount:

    NO

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

LME49810TB/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LME49810 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low equivalent series resistance (ESR) and a high ripple current rating. A ceramic capacitor with a value of 1-10uF is recommended. The output capacitor should have a low ESR and a high capacitance value (e.g., 22-47uF).
  • The maximum power dissipation of the LME49810 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation is typically around 2.5W, but this can be increased with proper heat sinking and thermal management.
  • The LME49810 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be added using external components such as voltage regulators, TVS diodes, and Zener diodes to protect against voltage transients and surges.
  • The recommended operating temperature range for the LME49810 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LME49810TB/NOPB Overview

Use the download button to access the LME49810TB/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LME49, or try a keyword search, such as Audio/Video Amplifiers
