A good PCB layout for the LME49811TB/NOPB involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the gain-setting resistors are properly matched, and the feedback network is properly terminated. Additionally, consider adding a compensation capacitor to the feedback network if necessary.
The maximum power dissipation of the LME49811TB/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated to 1.25W at 85°C ambient temperature.
Yes, the LME49811TB/NOPB can be used in a single-supply configuration. However, this requires careful consideration of the input common-mode voltage range and the output voltage swing. A voltage divider or a virtual ground circuit may be necessary to ensure proper operation.
To protect the LME49811TB/NOPB from overvoltage and ESD, consider adding voltage clamps or transient voltage suppressors on the input and output pins. Additionally, follow proper ESD handling procedures during assembly and storage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LME49811TB/NOPB Overview

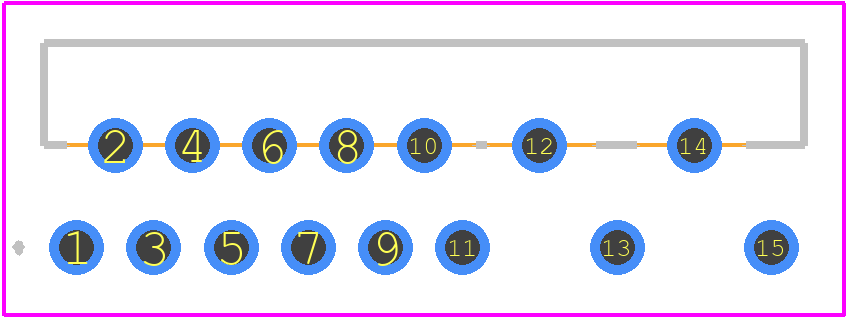

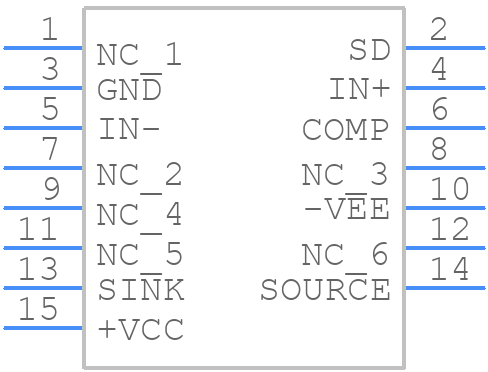

Use the download button to access the LME49811TB/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LME49,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
