LMG3410R050RWHT - Texas Instruments

Description: Gate Drivers 600-V 50-mΩ GaN with integrated driver and protection 32-VQFN -40 to 125°C

Download LMG3410R050RWHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

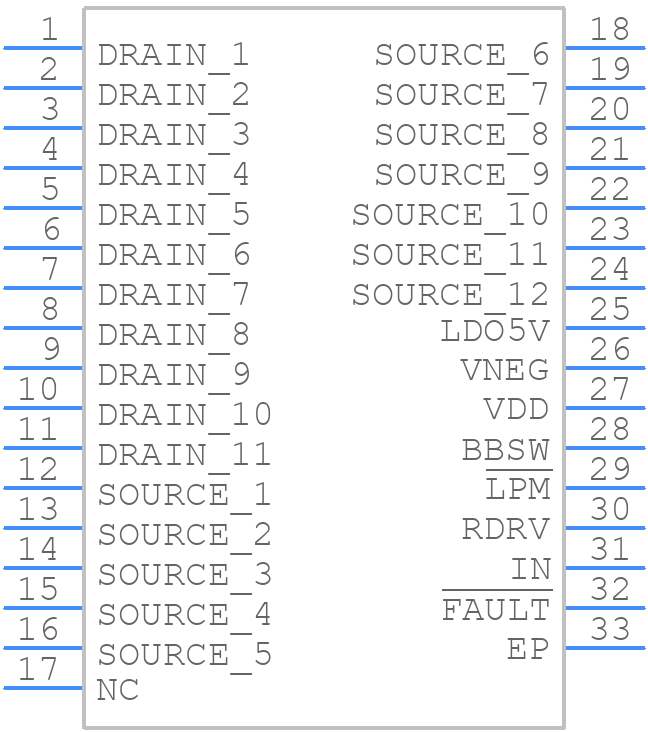

Symbol
LMG3410R050RWHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMG3410R050RWHT - Texas Instruments PCB footprint - Other - Other - LMG3410R050RWHT-4
click to zoom
3D Models
LMG3410R050RWHT - Texas Instruments - 3D model - Other - LMG3410R050RWHT-4
click to zoom

LMG3410R050RWHT Details

  • Manufacturer Part Number:

    LMG3410R050RWHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

LMG3410R050RWHT Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the LMG3410R050RWHT is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling of the LMG3410R050RWHT can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the PCB layout should be designed to minimize thermal impedance.
  • The recommended gate drive voltage for the LMG3410R050RWHT is between 10V and 15V, with a maximum voltage of 20V. A higher gate drive voltage can improve switching performance, but may also increase power consumption.
  • The LMG3410R050RWHT has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, additional external protection circuits may be necessary depending on the application. It's recommended to use a voltage clamp or a TVS diode to protect against overvoltage, and a current sense resistor or a current limiter to protect against overcurrent.
  • The recommended dead time for the LMG3410R050RWHT is typically between 100ns and 500ns, depending on the application and the switching frequency. A longer dead time can reduce switching losses, but may also increase the risk of shoot-through current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMG3410R050RWHT Overview

Use the download button to access the LMG3410R050RWHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG34, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
